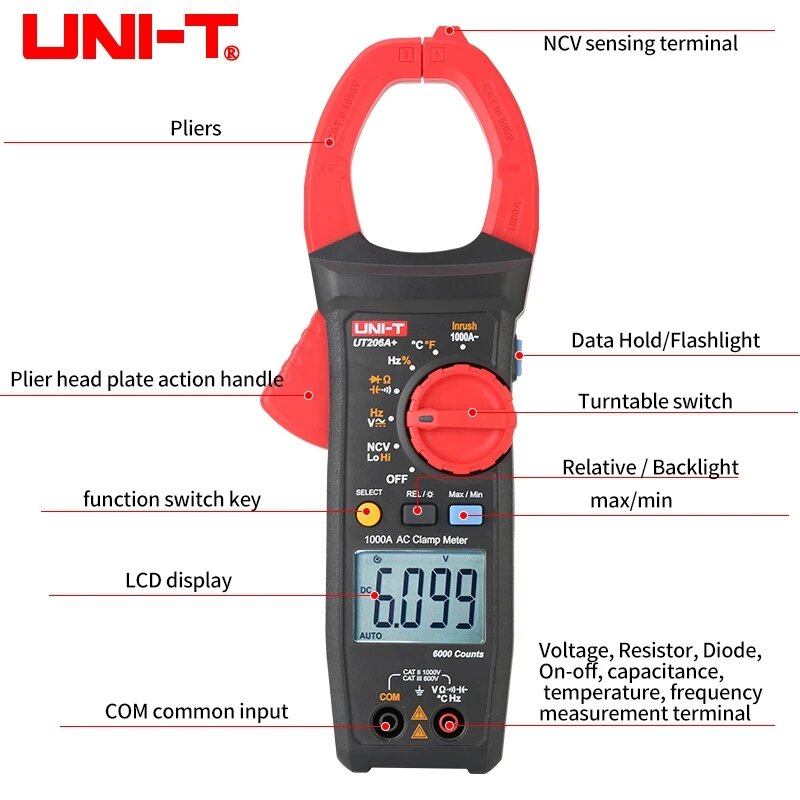

UT206A+ is a handheld automatic range AC clamp meter, designed according to safety standard EN61010-2010 CAT III 600V/CAT II 1000V class, with full-featured anti-burnout protection, to meet the high reliability and safety operation requirements; the product includes the basic functions of electrical measurement, current grade with high accuracy measurement, and UT206A+ has the function of inrush current and temperature, NCV measurement. The UT206A+ has both inrush current and temperature, NCV measurement functions, and is the preferred electrical measurement tool for electronic electricians.

Specifications	Range	UT206A+
AC current (A)	1000A	±(1.5%+5)
Inrush current (A)	600A	±(5%+10)
AC voltage (V)	1000V	±(1.0%uff0b2)
ACV frequency (Hz)	10Hzuff5e10kHz	±(1.0%uff0b5)
DC voltage (V)	1000V	±(0.7%uff0b3)
Resistance (u03a9)	60Mu03a9	±(0.8%+2)
Capacitance (F)	60mF	±(4%+5)
Frequency (Hz)	10.00Hzuff5e10.00MHz	±(0.1%+4)
Temperature (u2103/u2109)	u201340u2103uff5e1000u2103/u201340u2109uff5e1832u2109	±4u2103/±5u2109
Display count		6099
Jaw opening		45mm
Auto range		u221a
Duty cycle		u221a
NCV		u221a
Diode test		u221a
Continuity		u221a
Low battery	uff1c2.5V approximately	u221a
Indication		u221a
Data hold		u221a
Auto power off	Approximately 15 minutes	u221a
Max/Min		u221a
Flashlight		u221a
Backlight		u221a
Safety rating	CAT II 1000V/CAT III 600V	u221a

Features:

1.1000A AC current measurement

2.1000V AC/DC voltage measurement

3.600A inrush current measurement

4.Temperature

5.NCV

6.ACV frequency 10Hzuff5e10kHz

7.Jaw opening: 45mm

8.Resistance/capacitance/frequency measurement

9.Auto range/backlight/low battery indication

10.ACV frequency 10Hzuff5e10kHz

11.Jaw opening: 45mm

12.Resistance/capacitance/frequency measurement

13.Auto range/backlight/low battery indication

14.Continuity/diode/duty cycle

15.MAX/MIN

16.Data hold/flashlight/relative mode

17.Auto power off

18.CAT II 1000V/CAT III 600V

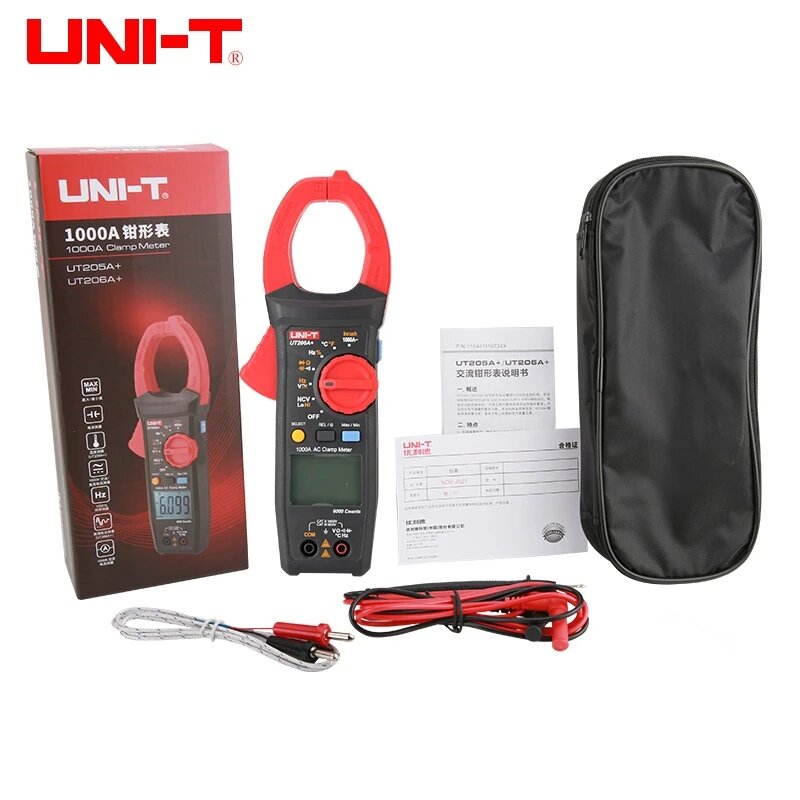

Package included:1 x UT206A+1 x Test Pen1 x Temperature Probe UT-T10K1 x Carring Bag
